Product Picture Master

Touchless dispenser PA1

The new standard for touchless hand hygiene in public areas

Our Plus

  • high-quality stainless steel construction
  • lockable
  • hygienic spray chamber
  • integrated drip tray
  • intuitive handling due to reliable touchless senor
  • adjustable dosage
  • compatible with mit 1,000 ml schülke bottles and with 1,000 ml Euro bottle

Downloads

Product Information Sheet, PDF [514.1 KB]
Open allClose all

Fields of Application

This new touchless hand disinfector für alcoholic hand disinfectants offers a high-quality and attractive solution for all public areas.

Instructions for use

Simple and precise dosage of hand disinfectants. The precise sprayhead function ensures optimal coverage of the palms - this makes the complete skin wetting easier.
The bottle change is also quick and unproblematic thanks to the internal spare bottle holder.
Technical advantages are:
• Long battery operating time
• optional with external power supply
• Window for filling level contraol
• Door contact system - door opening when dispenser is activated (optional)

Product data

Technical Data
Housing: Stainless steel, grinded
Door: Stainless steel, powder coated white
Window (for filling level control): plastic material, transparent
Dosing pump: Stainless steel, autoclavable
Drip tray: integriated
Dosing amount: adjustable in 4 levels; approx.. 0,7 - 1,0 - 1,25 - 1,5 ml /stroke
Batteries: 5 Batteries Monocell (Typ D)
Weight: 12,5 kg
Lock: Stainless steel
Wall mounting:with 4 screws and dowels

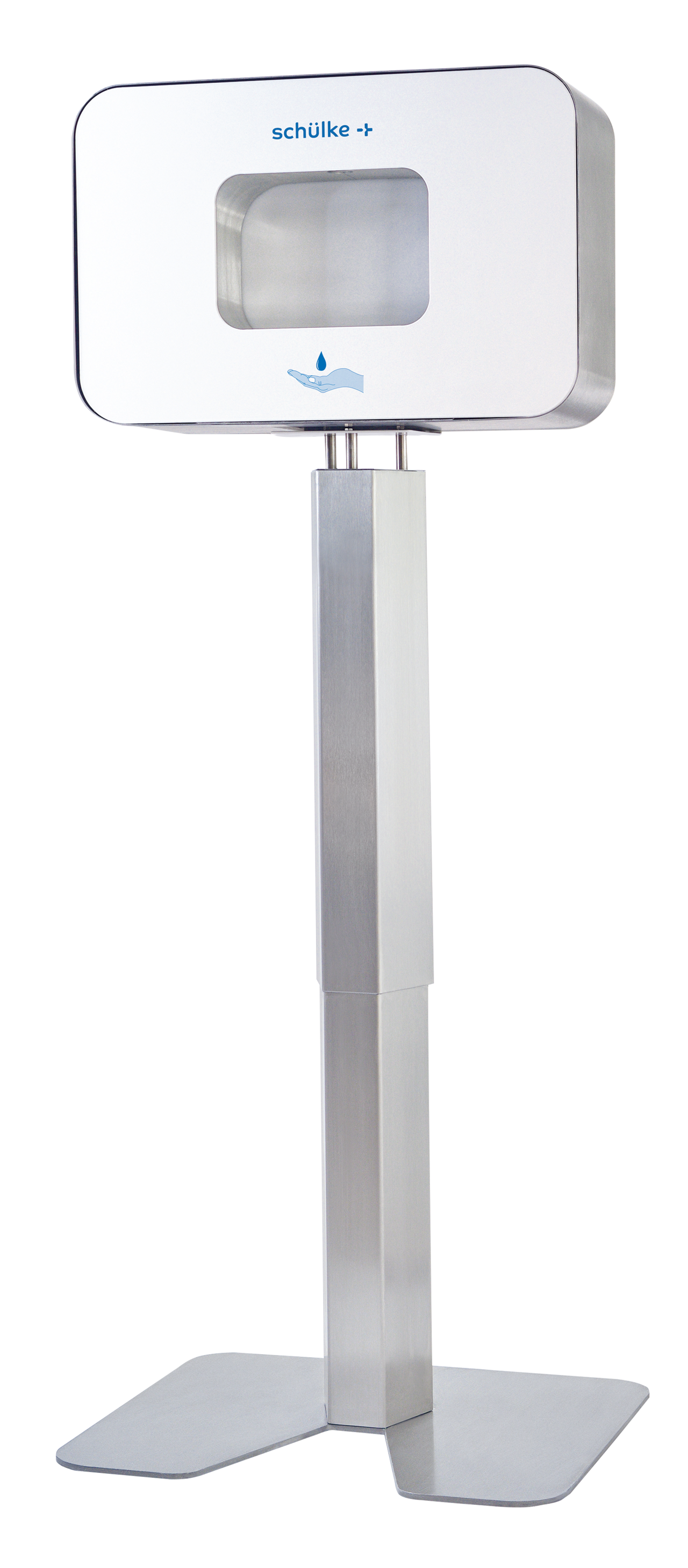

Technical Data - Column
Construciton kit: for self-installation for free-standing installation of touchless PA1;
Setting: 1200 mm (ground till the middle of the spray chamber)
Material: Stainless steel
Weight: 17,4 kg

Information for order

ItemDelivery formItem
Disinfection column for touchless PA11 / carton(s)60000116

Environmental information

schülke manufactures products economically and with advanced, safe and enviromentally friendly production processes and in compliance with high quality standards.
